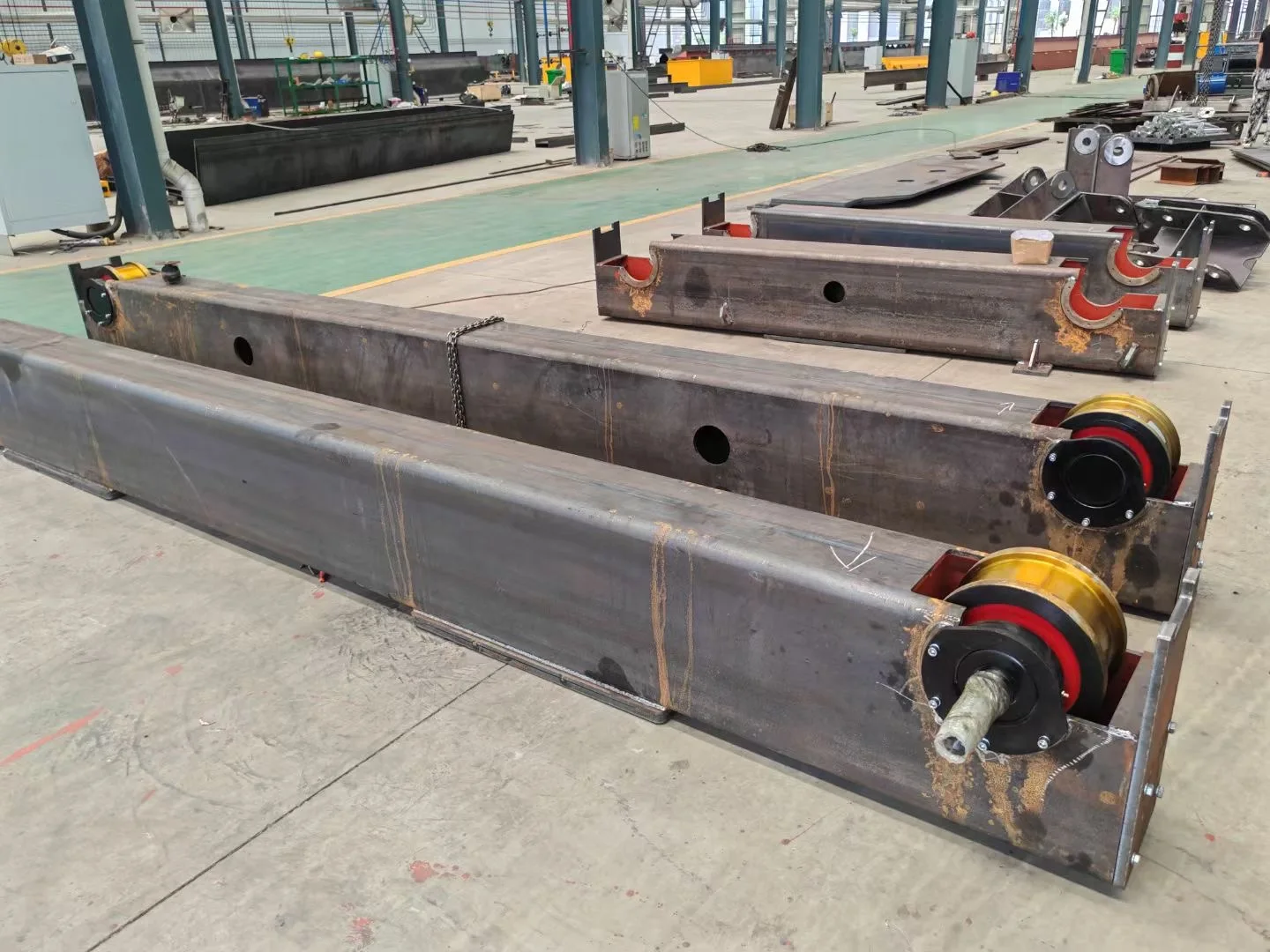

End carriage made of rectangular tube, transmission mechanism use gear reducer motor, equipped with the open pinion wheel or hollow shaft wheel. Suitable for single girder or double girder overhead crane. Wheel tread surface heat treatment.
It only need to weld the main beam and end beam after correction. Making crane manufacturing,installation and maintenance very easily.

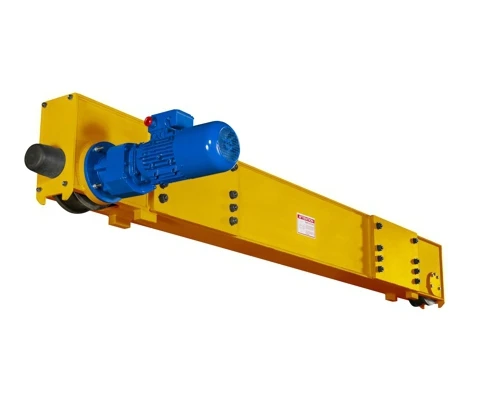

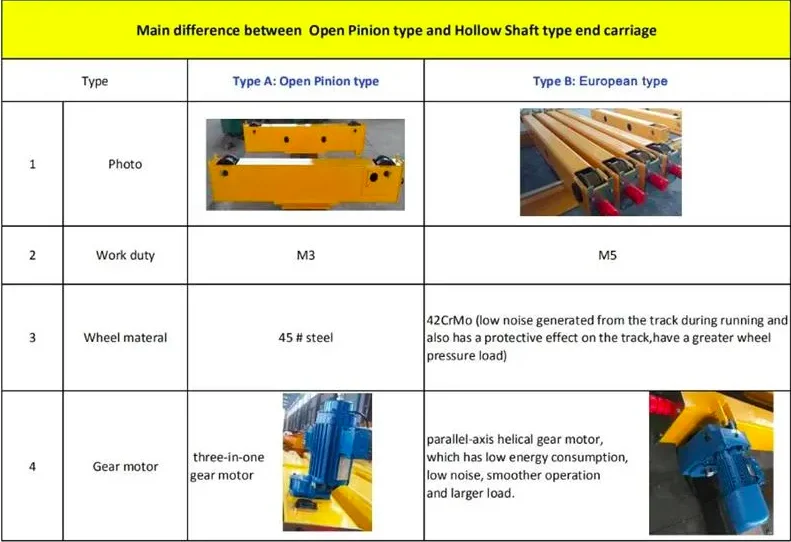

European type End carriage adopts F-series reducer and hollow shaft drive, working duty reach M5.

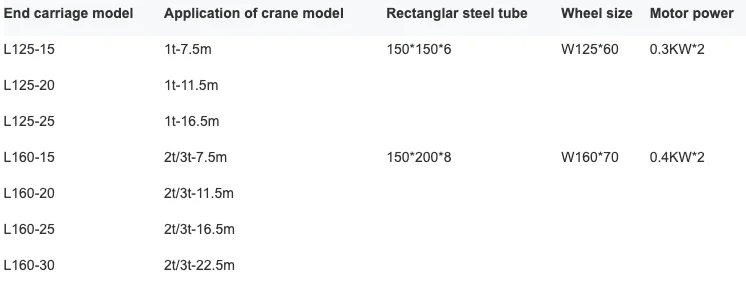

Product Parameters
End carriage made of rectangular tube, transmission mechanism use gear reducer motor, equipped with the open pinion wheel or hollow shaft wheel. Suitable for single girder or double girder overhead crane. Wheel tread surface heat treatment.
It only need to weld the main beam and end beam after correction. Making crane manufacturing, installation and maintenance very easily.
European type End carriage adopts F-series reducer and hollow shaft drive, working duty reach M5.

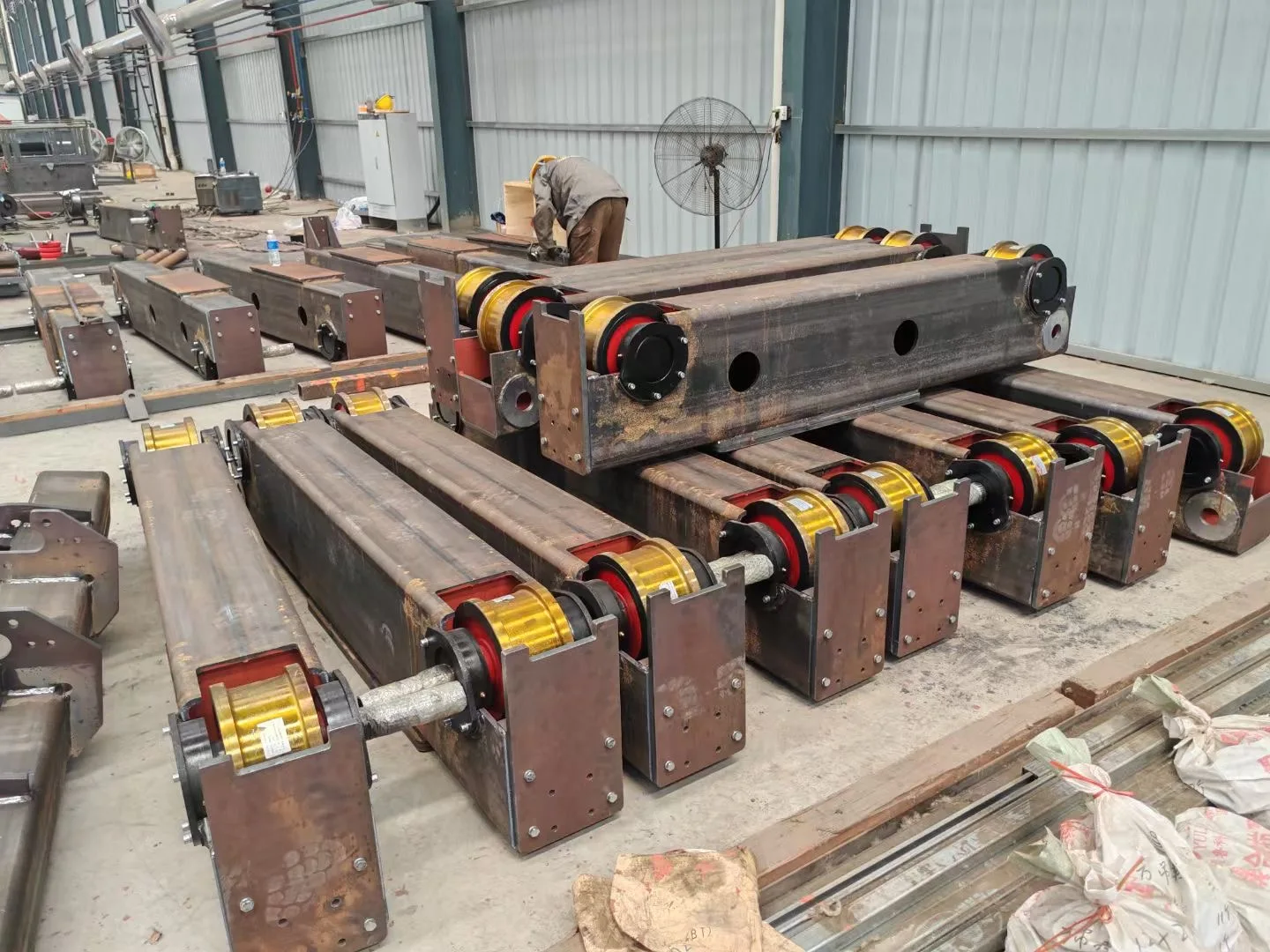

Crane End Carriage use rectangular tube manufacturing module, buffer motor drive, match with forged wheels, using numerical control lathe boring and milling of various Customized machine, Disposable completes the opening, boring, milling drilling.
